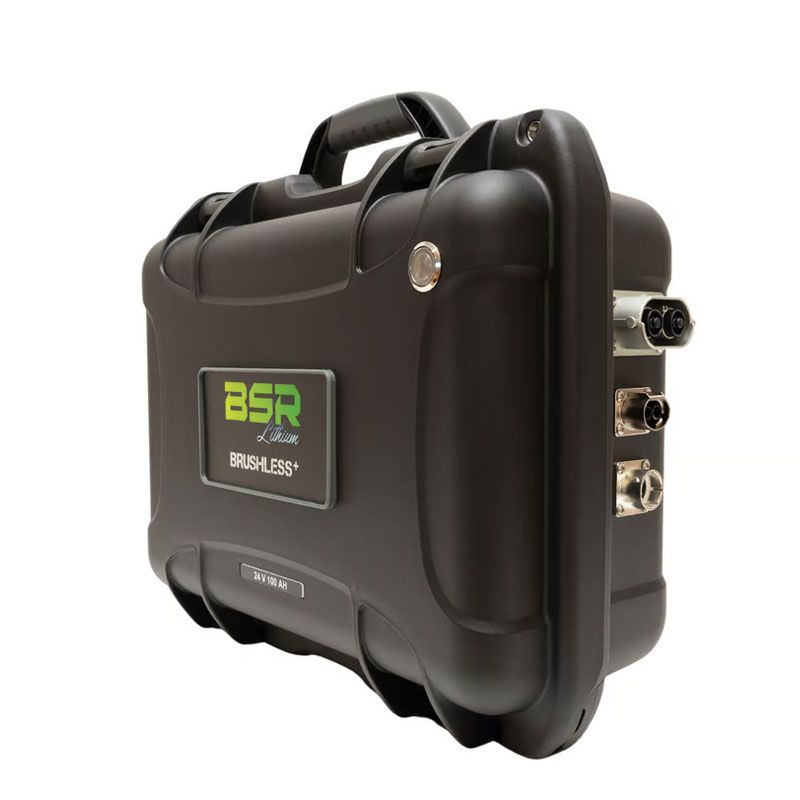

BSR BRUSHLESS+ Lithium Bluetooth Battery
PX6864-1
Rating
The BSR BRUSHLESS+ batteries provide stable and powerful energy for Brushless motors. The LiFePO4 technology ensures long lifespan and enhanced safety.
With the BSR-LITHIUM app, monitor real-time consumption, cycles, and active balancing.
Equipped with a 120A Amphenol connector for the motor, a 60A Amphenol connector for charging, and a 30A quick output, it delivers optimal energy distribution.
Key Features:
✔ Technology: LiFePO4, high performance, long lifespan.
✔ Voltage & Capacity: 24V to 38.4V, 100Ah depending on model.
✔ Power: Up to 7680Wh for maximum autonomy.
✔ Safety: UL94 VO, anti-explosion, anti-interference alloy.
✔ Connectivity: Bluetooth, real-time monitoring via mobile app.
✔ Connectors: Amphenol 120A, Amphenol 60A, 30A quick output.
✔ Waterproof: IPX7, resistant to shocks and water.
✔ Warranty: 4 years.
BSR BRUSHLESS+, the ultimate power solution to unlock the full potential of Brushless motors.
Warning, the shipping of the Lithium batteries are very restricted, please contact us before.
Shop with confidence
Secure payment
Our carriers
44 years of experience
in exotic fishing
Description
BSR BATTERY MAINTENANCE IS SIMPLE, BUT FOLLOWING THESE KEY POINTS WILL OPTIMIZE THEIR PERFORMANCE AND LIFESPAN:
- Upon receipt, read the manual, follow the recommended guidelines, and fully charge your new battery to 100%.
- It is recommended to recharge the battery after each use, even if it is not fully discharged.
- After a full discharge, recharge the battery as soon as possible, ideally within 24 hours.
- Off-season storage: Keep your battery charged and disconnected, and recharge it once a month.
Technical Specifications
| Specifications | BSR-VALG3P-1250+ | BSR-VALG3P-12100+ | BSR-VALG3P-24100+ | BSR-VALG3P-36100+ | BSR-VALG3P-36200+ |
|---|---|---|---|---|---|
| Structure | Case | Case | Case | Case | Case |
| Waterproof Rating | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 |
| Dimensions (mm) | 315 x 259 x 152 | 318 x 249 x 203 | 424 x 340 x 173 | 475 x 376 x 178 | 605 x 394 x 336 |
| Weight | 7 kg | 11 kg | 20 kg | 31,5 kg | 60 kg |
| Technology | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Voltage | 12.8V | 12.8V | 29.2V | 38.4V | 38.4V |
| Capacity | 50Ah | 100Ah | 100Ah | 100Ah | 200Ah |
| Power Output | 640Wh | 1280Wh | 2560Wh | 3840Wh | 7680Wh |
| 100% Discharge Cycle | 2000 | 2000 | 2000 | 2000 | 2000 |
| 50% Discharge Cycle | 4000 | 4000 | 4000 | 4000 | 4000 |
| Controller | Smartphone App | Smartphone App | Smartphone App | Smartphone App | Smartphone App |
| Connectivity | Bluetooth | Bluetooth | Bluetooth | Bluetooth | Bluetooth |
| Motor Connector | 1 Amphenol 60A port | 1 Amphenol 60A port | 1 Amphenol 60A port | 1 Amphenol 60A port | 1 Amphenol 60A port |
| Sonar Connector | 1 fast 30A port | 1 fast 30A port | 1 fast 30A port | 1 fast 30A port | 1 fast 30A port |
| Connector Waterproofing | IP67 coupled | IP67 coupled | IP67 coupled | IP67 coupled | IP67 coupled |
| Charger waterproof | Standard 14.6V 10A Not waterproof |
Standard 14.6V 10A Not waterproof |
Standard 29.2V 10A Not waterproof |
Fanless IP65 43.8V 25A waterproof |
Fanless IP65 43.8V 25A waterproof |
| Warranty | 4 years | 4 years | 4 years | 4 years | 4 years |
Product Details
PX6864-1
Data sheet
- Capacities (Ah)
- 100
200 - Weight
- 21 Kg
31.5 Kg
60 Kg - Voltage
- 12.8V
29.2V
38.4V
Reviews
No customer reviews for the moment.
Features of the versions
| Product | Model | Stock | Price (tax excl.) | |
|---|---|---|---|---|
|
BSR-BRUSH-24100 | bookmark_border ON ORDER |
2165.83 € | |
|
BSR-BRUSH-36100 | bookmark_border ON ORDER |
2915.83 € | |
|
BSR-BRUSH-36200 | bookmark_border ON ORDER |
4082.5 € |
